LLM Agentic Explainable Control

This section compares and explains the reasoning and control behavior of two LLMs—Llama 3.1 and Qwen 3-8B—in a liquid cooling control scenario.

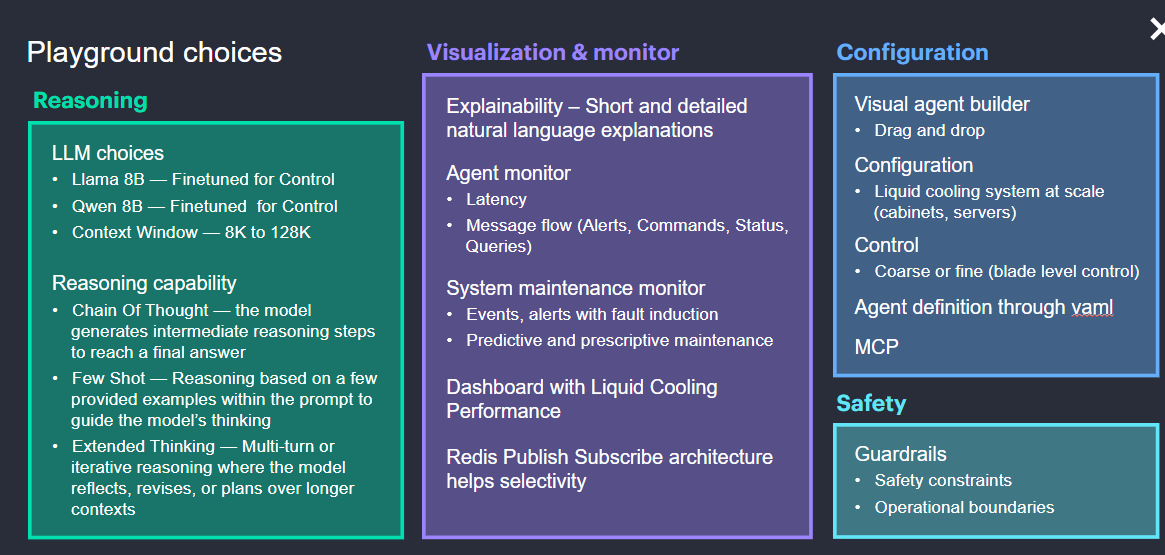

Agentic LLM System Overview

Executive Summary Comparison

  • Llama 3.1: The cooling system is currently maintaining a stable operating temperature across all five CDUs. Active cooling is provided by tower units, while cabinet valves regulate temperature precisely.

  • Qwen 3-8B: The system shows stable temperature deviations with minimal fluctuations. However, the cooling tower is operating at very low capacity (action 0), which may be causing reduced cooling efficiency. Cabinet 5 has a significant temperature deviation of -13.62K.

Cooling Assessment

  • Llama 3.1: The control goal is to maintain current temperature levels without further action.

  • Qwen 3-8B: Extremely low tower cooling action may reduce overall system cooling capacity, possibly affecting effectiveness in high-load scenarios.

Short-Term Recommendation

  • Llama 3.1: Monitor temperature and workload distributions. Adjust valve positions if necessary.

  • Qwen 3-8B: Increase tower operation to a moderate level to improve heat rejection and reduce overcooling risks.

Qwen 3-8B: Short Explanation

Explanation: The system adjusted valve positions across all cabinets to balance cooling performance and energy efficiency. Tower cooling was set low due to stable temperature trends.

  • Temperature impact: - All temperatures are within normal range with minor deviations. - Very low tower cooling may limit fine control.

  • Energy efficiency: - Low tower usage contributes to moderate energy savings.

  • Inference time: 1.11 seconds

Qwen 3-8B: Detailed Explanation

Executive Summary: Qwen 3-8B keeps system temperatures stable and emphasizes energy efficiency.

  • Temperature stability: - Most cabinets operate within expected norms. - Cabinet 5 shows abnormal deviation (-13.62K), possibly due to overcooling.

  • Valve actions: - Even valve distribution across cabinets and blade groups. - Cooling tower set to low (action 0), improving efficiency but reducing capacity.

  • Cabinet temperature: - Cabinet 5’s deviation may indicate inefficiency or control imbalance.

  • Energy efficiency: - Considered moderate. - Low tower usage reduces energy cost, but system responsiveness may suffer.

  • Action rationale: - Control decisions were based on observed temperature ranges. - While performance is good, overcooling risk should be monitored.

  • Inference time: 4.91 seconds
