Additional Features and Functionality

OpenShift API Data Protection

Introduction

OpenShift API for Data Protection (OADP) product safeguards customer applications on OpenShift Container Platform. It offers comprehensive disaster recovery protection, covering OpenShift Container Platform applications, application-related cluster resources, persistent volumes, and internal images. OADP is also capable of backing up both containerized applications and virtual machines (VMs).

However, OADP does not serve as a disaster recovery solution for etcd or OpenShift Operators.

Installation

  • In the OpenShift Container Platform web console, click Ecosystem → Software Catalog.

  • Select an existing project name or create new project.

  • Use the Filter by keyword field to find the OADP Operator.

  • Select the OADP Operator and click Install.

  • Click Install to install the Operator in the openshift-adp project.

  • Click Ecosystem → Installed Operators to verify the installation.

Creating secret:

Create a Secret with the default name:

$ oc create secret generic cloud-credentials -n openshift-adp --from-file cloud=credentials-velero

The Secret is referenced in the spec.backupLocations.credential block of the DataProtectionApplication CR when you install the Data Protection Application.

Configuring the Data Protection Application

Configure the client-burst and the client-qps fields in the DPA as shown in the following example:

apiVersion: oadp.openshift.io/v1alpha1
kind: DataProtectionApplication
metadata:
  name: test-dpa
  namespace: openshift-adp
spec:
  backupLocations:
    - name: default
      velero:
        config:
          insecureSkipTLSVerify: "true"
          profile: "default"
          region: <bucket_region>
          s3ForcePathStyle: "true"
          s3Url: <bucket_url>
        credential:
          key: cloud
          name: cloud-credentials
        default: true
        objectStorage:
          bucket: <bucket_name>
          prefix: velero
        provider: aws
  configuration:
    nodeAgent:
      enable: true
      uploaderType: restic
    velero:
      client-burst: 500
      client-qps: 300
      defaultPlugins:
        - openshift
        - aws
        - kubevirt

Setting Velero CPU and memory resource allocations

You can set the CPU and memory resource allocations for the Velero pod by editing the DataProtectionApplication custom resource (CR) manifest.

Prerequisites

  • You must have the OpenShift API for Data Protection (OADP) Operator installed.

Procedure

  • Edit the values in the spec.configuration.velero.podConfig.ResourceAllocations block of the DataProtectionApplication CR manifest, as in the following example:
apiVersion: oadp.openshift.io/v1alpha1
kind: DataProtectionApplication
metadata:
  name: <dpa_sample>
spec:
# ...
  configuration:
    velero:
      podConfig:
        nodeSelector: <node_selector>
        resourceAllocations:
          limits:
            cpu: "1"
            memory: 1024Mi
          requests:
            cpu: 200m
            memory: 256Mi

Specify the node selector to be supplied to Velero podSpec.

The resourceAllocations listed are for average usage.

Backup process:

  • Goto Installed Operators -> OADP Operator -> backup -> create backup

  • Provide name and required details:

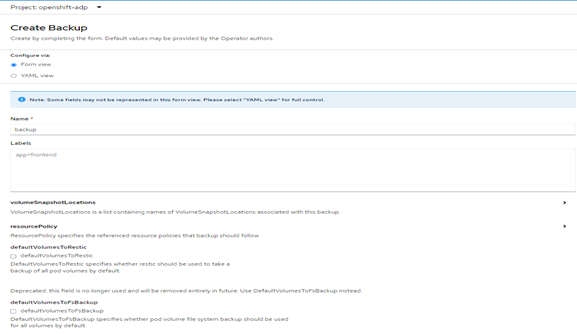

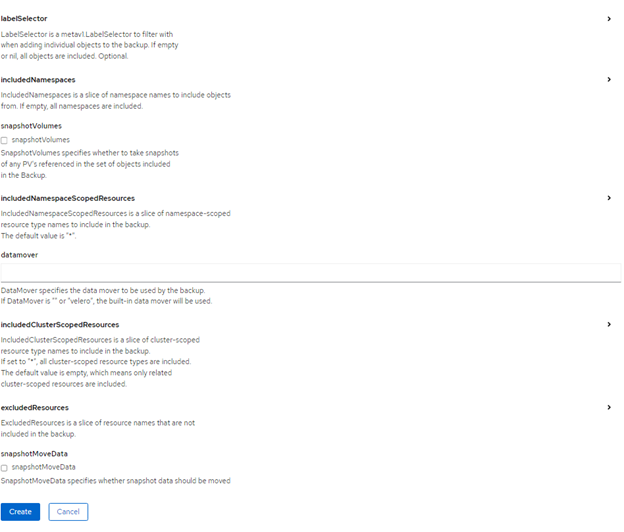

FIGURE 58. Creating a backup using OADP

  • Click create

AirGap Deployment

Deploy OpenShift Container Platform using Airgap Method

This sections of documents describes about deploying the OpenShift Container Platform through disconnected environment.

  1. Create YUM repo server

  2. Create Mirror registry

  3. OpenShift Deployment

  • Prerequisites:

we will be using one server for all the below services and which will be having internet access to download the images.

  • Download server

  • YUM server

  • Mirror Registry

Download/YUM/Mirror registry server requirements

a) Recommended Operating system RHEL 9.4

b) At least 500 GB disk space (especially in the "/" partition), 4 CPU cores and 16GB RAM.

c) OS disk: 2x 1.6 TB ; Data disk: ~2 TB

d) Provide the required values in input.yaml file (vi /opt/hpe-solutions-openshift/DL-LTI-Openshift/input.yaml )

e) Setup the Download server to configure the nginx, development tools and other python packages required for LTI installation.

Navigate to the directory, cd /opt/hpe-solutions-openshift/DL-LTI-Openshift/ and run the below command.

  'sh setup.sh'

As part of setup.sh script it will create nginx service, so user must download and copy rhel 9.4 DVD ISO to /usr/share/nginx/html/

  1. Create Yum Repo server

a) Navigate to /opt/hpe-solutions-openshift/DL-LTI-Openshift/ folder and update the hosts file with the yumrepo server details.

b) Navigate to yum folder

cd /opt/hpe-solutions-openshift/DL-LTI-Openshift/airgap/yum

c) Run the below command to create yum repo server

ansible-playbook -i /opt/hpe-solutions-openshift/DL-LTI-Openshift/hosts playbooks/create_local_yum_repo.yaml
  1. Mirror Registry

a) Navigate to folder "/opt/hpe-solutions-openshift/DL-LTI-Openshift/".

For airgap deployment provide the below values in input.yaml file

vi /opt/hpe-solutions-openshift/DL-LTI-Openshift/input.yaml

# fill the below values for the airgap deployment
is_environment_airgap: 'yes'
mirror_registry_ip:
mirror_registry_fqdn:
LOCAL_REGISTRY:
LOCAL_REPOSITORY:
ARCHITECTURE:

b) Navigate to mirror_registry folder

cd /opt/hpe-solutions-openshift/DL-LTI-Openshift/airgap/mirror_registry

c) Download and install the mirror registry

ansible-playbook playbooks/download_mirror_registry_package.yaml
ansible-playbook playbooks/install_mirror_registry.yaml

generate ssl certificates

  ansible-playbook playbooks/generate_ssl_certs.yaml

run the below commands to copy the above generated ssl certs

  cp certs/ssl.key quay-install/quay-config/
  cp certs/ssl.cert quay-install/quay-config/
  cat certs/rootCA.pem >> quay-install/quay-config/ssl.cert
  mkdir -p /etc/containers/certs.d/<mirror_registry_fqdn>        # Here provide you mirror registryg fqdn
  cp certs/rootCA.pem  /etc/containers/certs.d/<mirror_registry_fqdn>/ca.crt
  cp certs/rootCA.pem /etc/pki/ca-trust/source/anchors/
  sudo update-ca-trust extract
  systemctl restart quay-app

d) execute the playbook site.yaml

site.yaml file contains the following playbooks

    - import_playbook: playbooks/download_openshift_components.yaml  # it will download ocp related images, client and installer
    - import_playbook: playbooks/create_json_pull_secret.yaml
    - import_playbook: playbooks/update_json_pull_secret.yaml
    - import_playbook: playbooks/mirroring_ocp_image_repository.yaml
  1. For OpenShift Solution Deployment follow the existing process listed for OpenShift Deployment

Red Hat Advanced Cluster Management for Kubernetes

Introduction

Red Hat Advanced Cluster Management for Kubernetes provides end-to-end management visibility and control to manage your Kubernetes environment. Take control of your application modernization program with management capabilities for cluster creation, application lifecycle, and provide security and compliance for all of them across data centers and hybrid cloud environments. Clusters and applications are all visible and managed from a single console, with built-in security policies. Run your operations from anywhere that Red Hat OpenShift Container Platform runs, and manage your Kubernetes clusters.

With Red Hat Advanced Cluster Management for Kubernetes:

  • Work across a range of environments, including multiple data centers, private clouds and public clouds that run Kubernetes clusters.

  • Easily create OpenShift Container Platform Kubernetes clusters and manage cluster lifecycle in a single console.

  • Enforce policies at the target clusters using Kubernetes-supported custom resource definitions.

  • Deploy and maintain day two operations of business applications distributed across your cluster landscape.

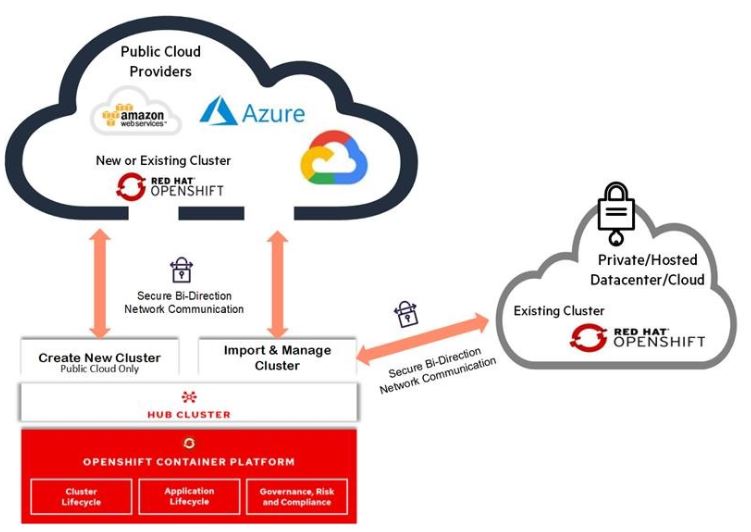

Figure 19 shows Architecture of Advanced Cluster Management for Kubernetes

FIGURE 59. Multi-Cluster Management with Red Hat Advanced Cluster Management

Installing Red Hat Advanced Cluster Management from the console

Prerequisites

  • Hub Cluster

    OpenShift Container Platform 4.x successfully deployed.

    Operator Hub availability.

  • Managed Clusters

    OpenShift 4.x on from public cloud providers (Amazon Web Services, Google Cloud, IBM and Microsoft Azure) or Private clouds (Openstack, OpenShift).

Flow Diagram

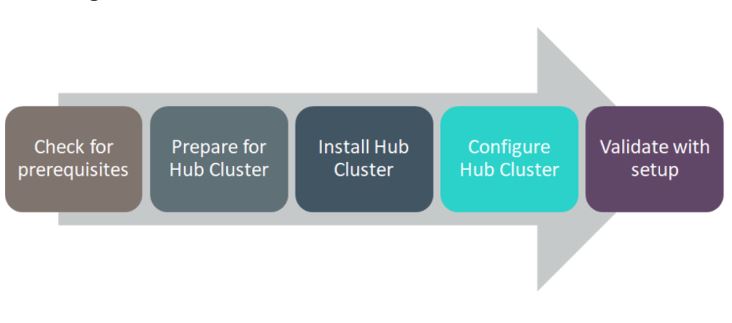

FIGURE 60. RedHat Advanced Cluster Management Solution Flow Diagram

Installation

Following steps needs to perform prior to installing Advanced Cluster Management from the OpenShift Console.

  • Create Namespace

  • Create Pull Secrets

Follow below steps to creating namespace.

  1. Create a hub cluster namespace for the operator requirements:

    • In the OpenShift Container Platform console navigation, select Administration -> Namespaces.

    • Select create Namespace.

  2. Provide a name for your namespace. This is the namespace that you use throughout the installation process.

    NOTE

    The value for namespace might be referred to as Project in the OpenShift Container Platform environment.

Follow below steps to create secrets.

  1. Switch your project namespace to the one that you created in step 1. This ensures that the steps are completed in the correct namespace. Some resources are namespace specific.

    I. In the OpenShift Container Platform console navigation, select Administration -> Namespaces.

    II. Select the namespace that you created in step 1 from the list.

  2. Create a pull secret that provides the entitlement to the downloads.

    I. Copy your OpenShift Container Platform pull secret from cloud.redhat.com

    II. In the OpenShift Container Platform console navigation, select Workloads -> Secrets.

    III. Select Create -> Image Pull Secret.

    IV. Enter a name for your secret.

    V. Select Upload Configuration File as the authentication type.

    VI. In the Configuration file field, paste the pull secret that you copied from cloud.redhat.com.

    VII. Select Create to create the pull secret.

Installing Advanced Cluster Management Operator

  1. In the OpenShift Container Platform console navigation, select Ecosystem -> Software Catalog.

  2. Select an existing project name or create new project.

  3. Select Red Hat Advanced Cluster Management.

  4. Select Install.

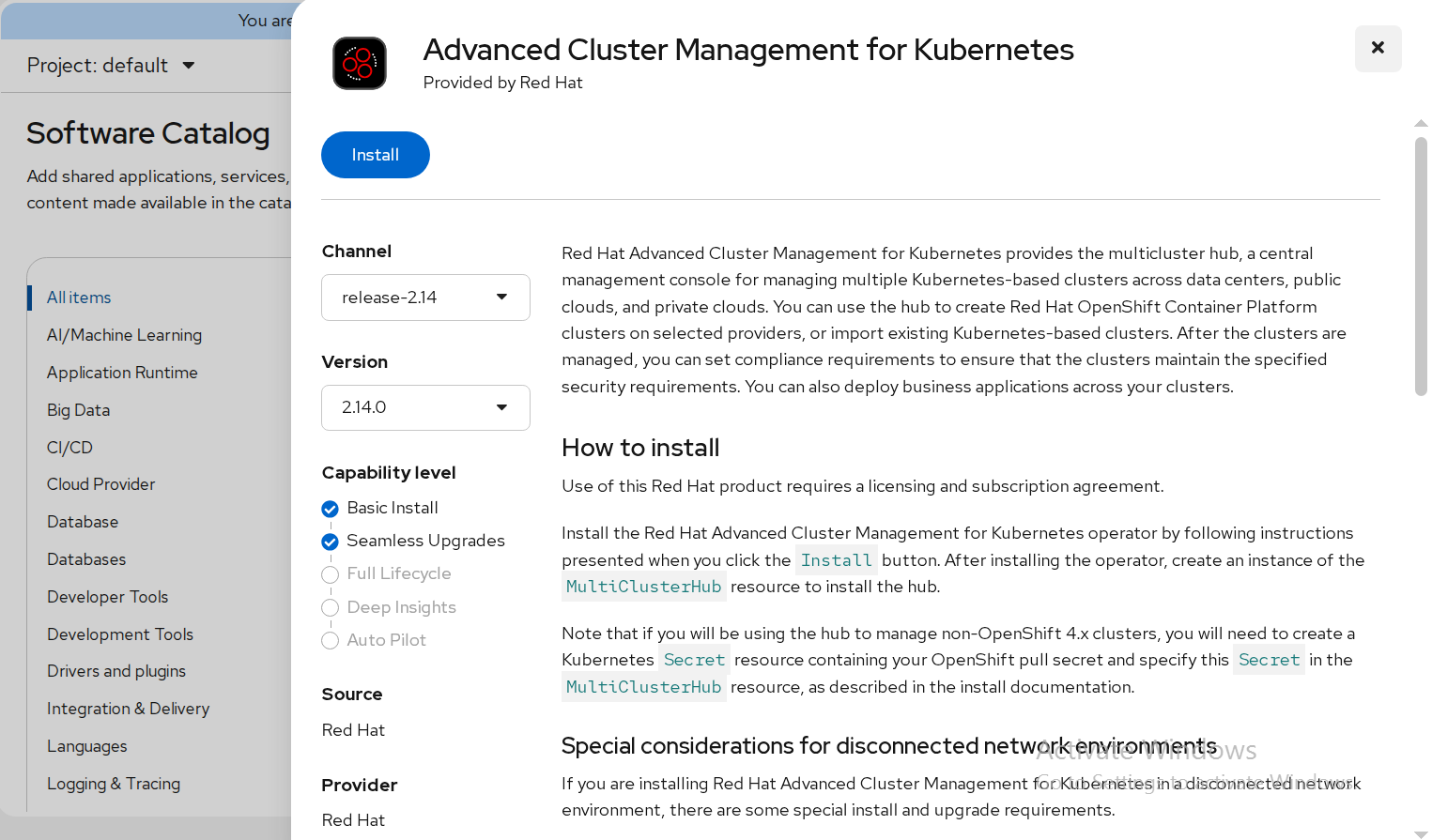

    FIGURE 61. RedHat Advanced Cluster Management Operator deployment

  5. Update the values, if necessary.

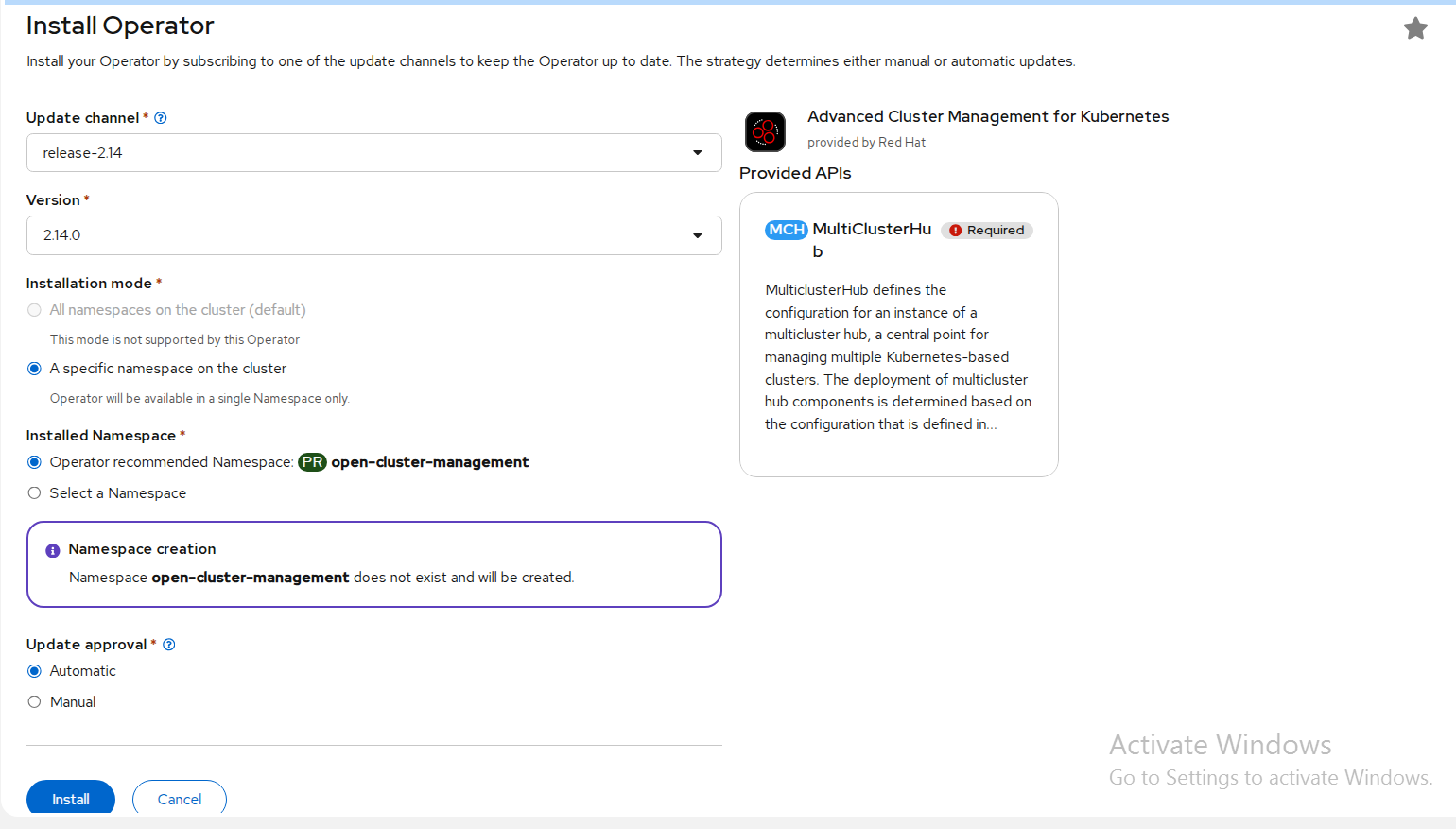

    FIGURE 62. RedHat Advanced Cluster Management Operator

  6. Select specific namespace on the cluster for the Installation Mode option.

    I. Select open-cluster-management namespace from the drop down menu.

  7. selected by default for the Update Channel option.

  8. Select an Approval Strategy:

    I. Automatic specifies that you want OpenShift Container Platform to upgrade Advanced Cluster Management for kubernetes Operator.

    II. Manual specifies that you want to have control to upgrade Advanced Cluster Management for kubernetes Operator manually

  9. Select Install.

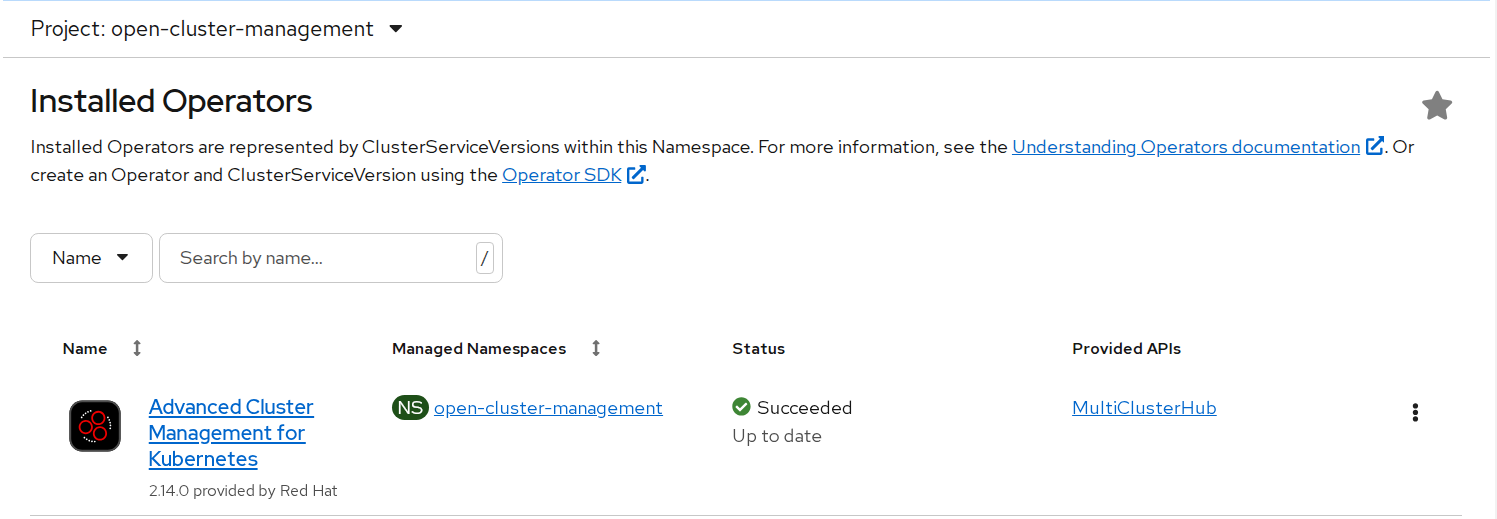

    FIGURE 63. Deployed RedHat ACM Operator

  10. The Installed Operators page is displayed with the status of the operator.

Create the MultiClusterHub custom resource

  1. In the OpenShift Container Platform console navigation, select Installed Operators -> Advanced Cluster Management for Kubernetes.

  2. Select the MultiClusterHub tab.

  3. Select Create MultiClusterHub.

  4. Update the values, according to your needs.

  5. Tip: You can edit the values in the YAML file by selecting YAML View. Some of the values are only available in the YAML view. The following example shows some sample data in the YAML view:

    apiVersion: operator.open-cluster-management.io/v1

kind: MultiClusterHub

metadata:

namespace: << newly created namespace>>

name: multiclusterhub

spec:

imagePullSecret: <secret>

    Add the pull secret that you created to the imagePullSecret field on the console. In t he YAML View, confirm that the namespace is your project namespace.

  6. Select Create to initialize the custom resource. It can take up to 10 minutes for the hub to build and start.

    After the hub is created, the status for the operator is Running on the Installed Operators page.

Access the Advanced Cluster Management console for the hub

  1. Red Hat Advanced Cluster Management for Kubernetes web console is integrated with the Red Hat OpenShift Container Platform web console as a console plug-in. You can access Red Hat Advanced Cluster Management within the OpenShift Container Platform console from the top navigation drop-down menu, which now provides two options: Administrator and Fleet Management. The menu initially displays Administrator.

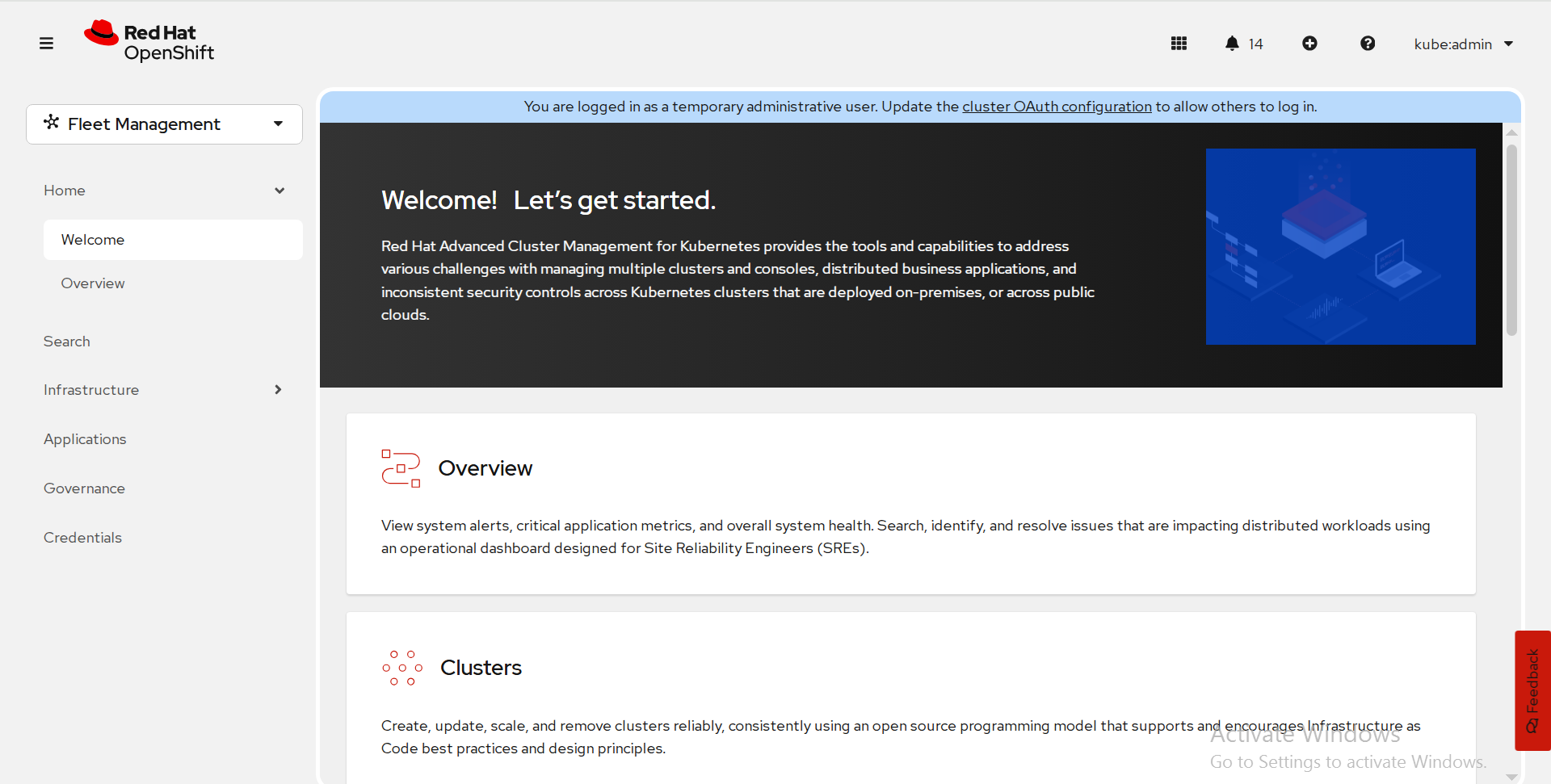

    FIGURE 64. ACM console

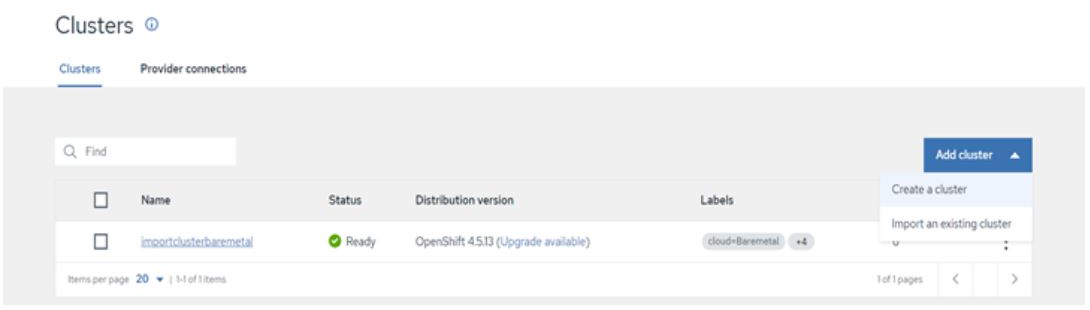

  2. To create/ import an existing cluster from Advanced Cluster Management console, click on Clusters.

Import an existing Cluster using Advanced Cluster Management console

  1. In the Cluster list tab, Click Import cluster.

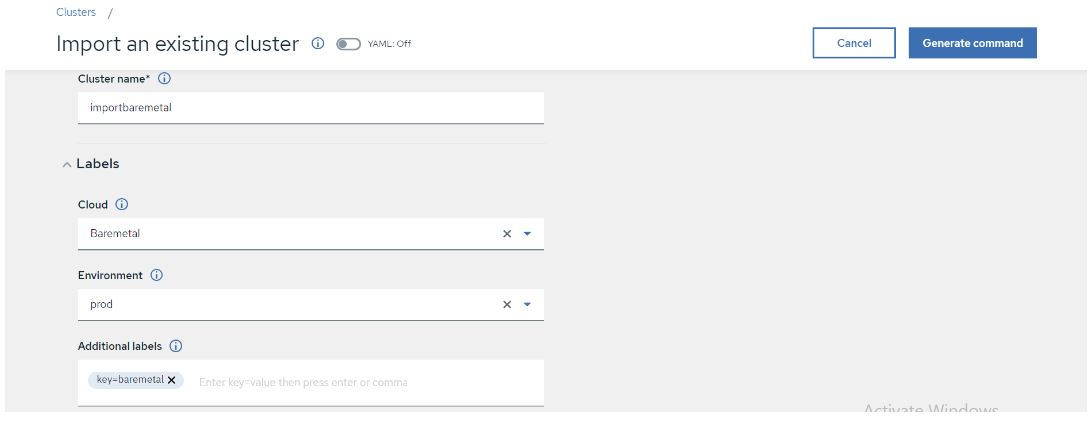

  2. It displays a window as below, there you can provide Cluster name, Cloud (public or on-premise), Environment and labels are optional.

FIGURE 65. Importing existing cluster to ACM

  1. Once you provide all the details, Click on Generate Command.

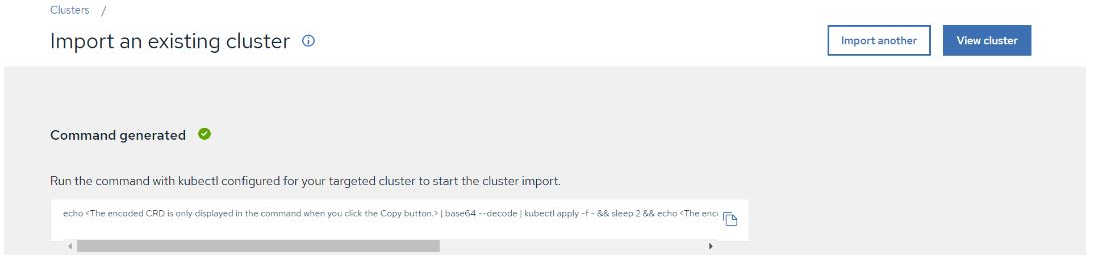

FIGURE 66. Generated command from ACM

  1. Copy the command generated, Run it on imported cluster.

  2. After running the command, we should navigate to Advanced Cluster Management console there we can find the status of imported cluster details in cluster option as per below snap.

FIGURE 67. Imported cluster details to ACM Console

Red Hat Advanced Cluster security for Kubernetes

Red Hat Advanced Cluster Security (RHACS) for Kubernetes is the pioneering Kubernetes-native security platform, equipping organizations to build, deploy, and run cloud-native applications more securely. The solution helps protect containerized Kubernetes workloads in all major clouds and hybrid platforms. Central services include the user interface (UI), data storage, RHACS application programming interface (API), and image scanning capabilities. RHACS Cloud Service allows you to secure self-managed clusters that communicate with a Central instance. The clusters you secure, called Secured Clusters.

Prerequisites

  1. Access to a Red Hat OpenShift Container Platform cluster using an account with Operator installation permissions.
  2. Red Hat OpenShift Container Platform 4.20 or later. For more information, see Red Hat Advanced Cluster Security for Kubernetes Support Policy

Install the Red Hat Advanced Cluster Security Operator

  1. Navigate in the web console to the Ecosystem -> Software Catalog page.

  2. Select an existing project name or create new project.

  3. If Red Hat Advanced Cluster Security for Kubernetes is not displayed, enter Advanced Cluster Security into the Filter by keyword box to find the Red Hat Advanced Cluster Security for Kubernetes Operator.

  4. Select the Red Hat Advanced Cluster Security for Kubernetes Operator to view the details page.

  5. Read the information about the Operator, and then click Install.

  6. On the Install Operator page:

    a. Keep the default value for Installation mode as All namespaces on the cluster.

    b. Choose a specific namespace in which to install the Operator for the Installed namespace field. Install the Red Hat Advanced Cluster Security for Kubernetes Operator in the rhacs-operator namespace.

    c. Select automatic or manual updates for Update approval.

  7. Click Install.

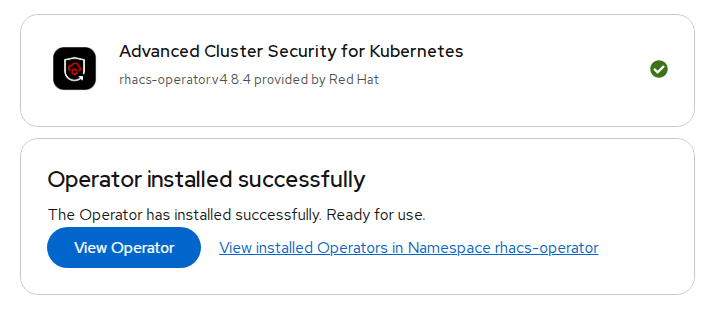

Verification: After the installation completes, navigate to Ecosystem > Installed Operators to verify that the Red Hat Advanced Cluster Security for Kubernetes Operator is listed with the status of Succeeded.

FIGURE 68. Red Hat ACS Operator Installation Install the Central Red Hat Advanced Cluster Security

  1. On the Red Hat OpenShift Container Platform web console, navigate to the Ecosystem > Installed Operators page.
  2. Select the Red Hat Advanced Cluster Security for Kubernetes Operator from the list of installed Operators.
  3. If you have installed the Operator in the recommended namespace, OpenShift Container Platform lists the project as rhacs-operator, Select Project: rhacs-operator → Click Create project.Operator
  4. Enter the new project name (stackrox) and click Create. Red Hat recommends that you use stackrox as the project name.
  5. Under the Provided APIs section, select Central. Click Create Central.

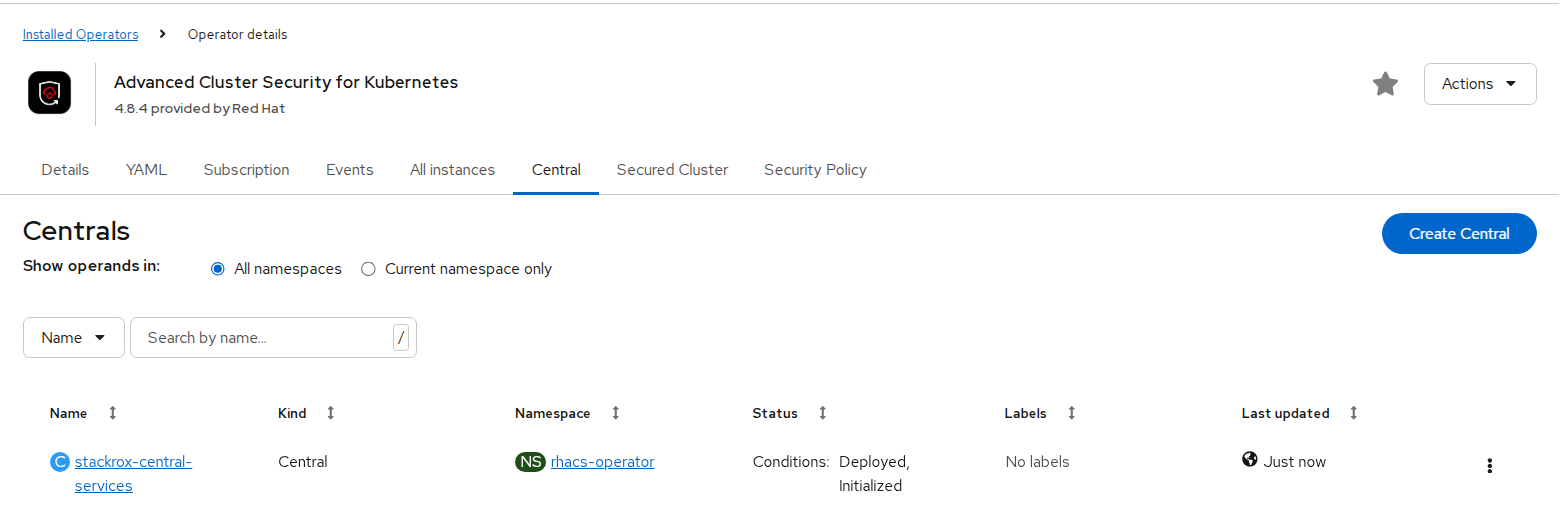

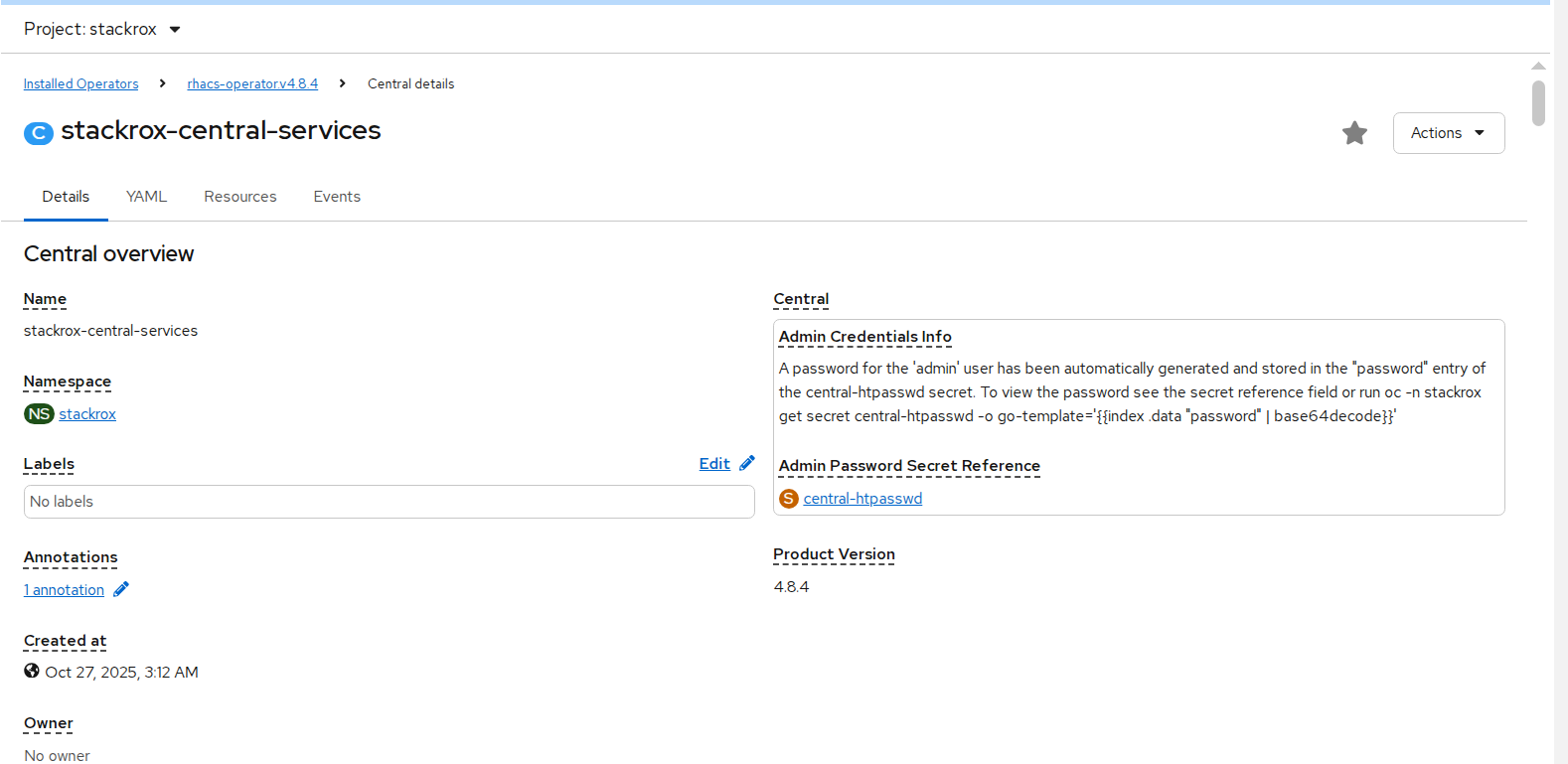

FIGURE 69. Central Red Hat Advanced Cluster Security (ACS) Installation

  1. Configure via yaml view, keep default values, and click create.
  2. In stackrox-central-services details we will find Admin credentials information.

FIGURE 70. Stackrox-central-services details

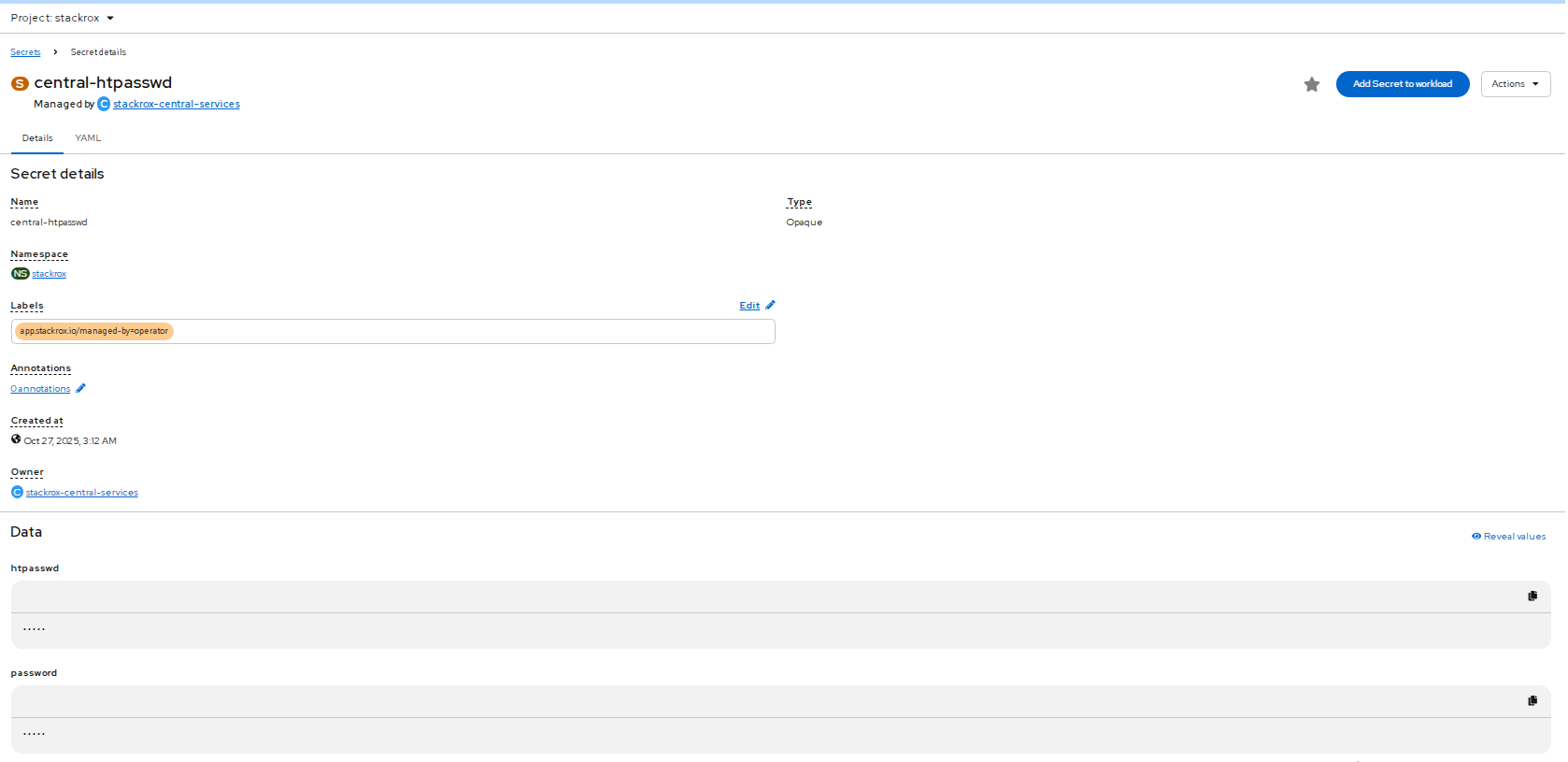

  1. Click central-htpasswd below Admin Password Secret Reference to find the central login credentials and note the htpasswd username(admin) and password.
  2. Navigate to Networking > Routes to find the central url.

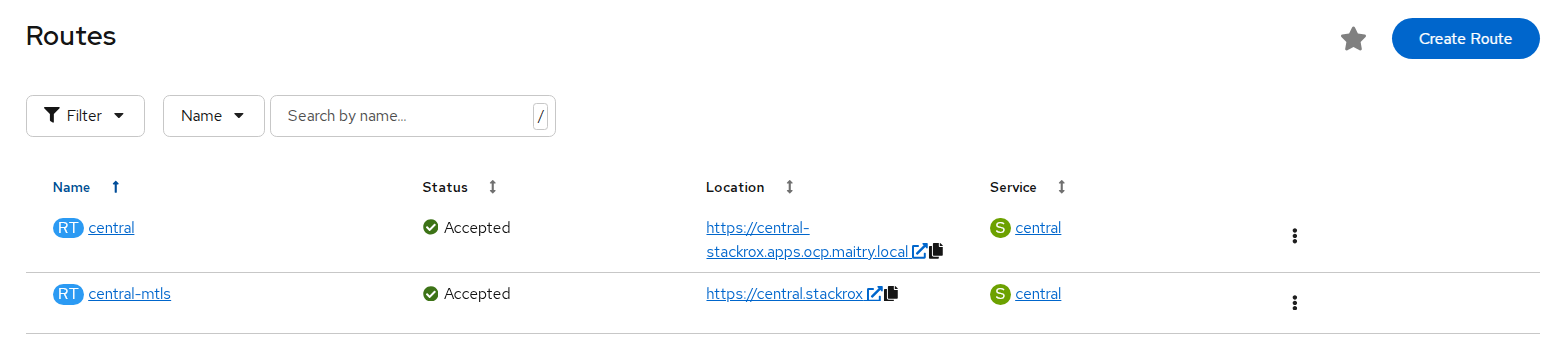

FIGURE 71. Stackrox central url

  1. Log in to the central console using htpasswd credentials.

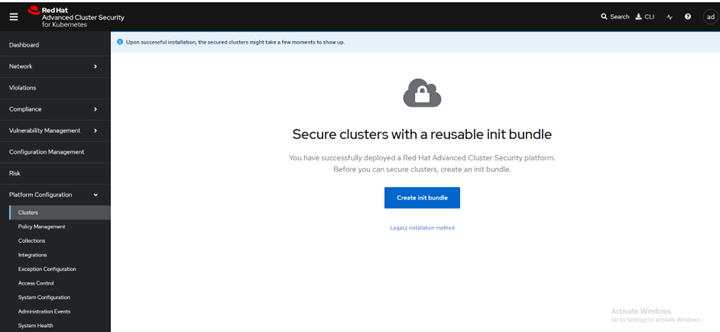

FIGURE 72. Central console dashboard

Create init bundle using RHACS portal

  1. On the RHACS portal, navigate to Platform Configuration > Integrations.
  2. Navigate to the Authentication Tokens section and click Cluster Init Bundle.

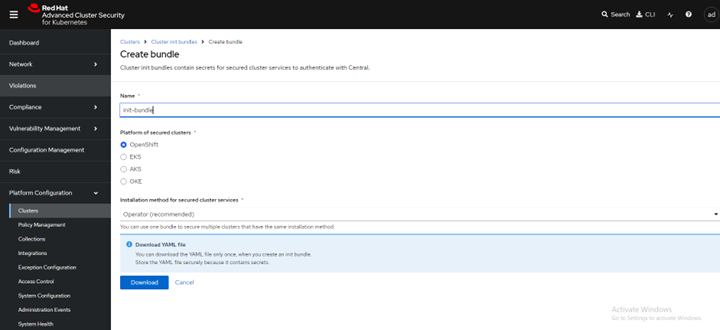

FIGURE 73. Create init bundle

  1. Click Create bundle.
  2. Enter a name for the cluster init bundle and click Download.

Apply the init bundle by creating a resource on the secured cluster

Before installing secured clusters, we must use the init bundle to create the required resources on the cluster that will allow the services on the secured clusters to communicate with Central. Use any one of the following methods.

  1. Method 1: Using the CLI

    a. Run the following commands to create the resources:

    oc create namespace stackrox

    b. (Specify the file name of the init bundle containing the secrets)

    oc create -f <init_bundle.yaml> -n <stackrox>

    c. Specify the name of the project where secured cluster services will be installed

  2. Method 2 : using the web console

    a. In the OpenShift Container Platform web console on the cluster that you are securing, in the top menu, click + to open the Import YAML page. You can drag the init bundle file or copy and paste its contents into the editor, and then click Create.

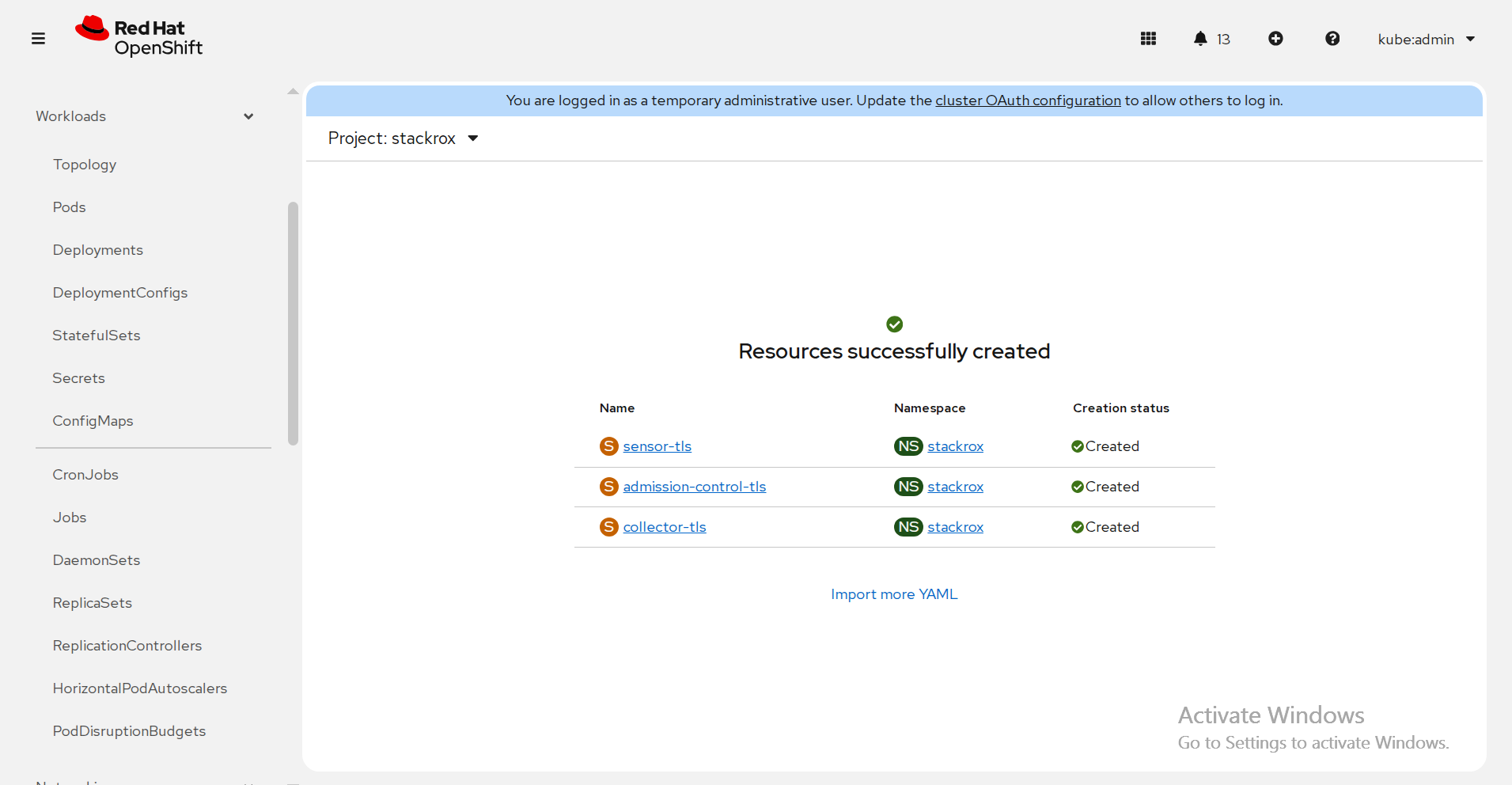

    FIGURE 74. Resource creation on secured cluster

Install secured cluster services within same cluster

Prerequisites

  1. If using OpenShift Container Platform, ensure the installation of version 4.20 or later.
  2. Installation of the RHACS Operator and generation of an init bundle that is applied to the cluster.

Procedure

  1. On the OpenShift Container Platform web console, navigate to the Ecosystem > Installed Operators page and select the RHACS Operator.
  2. Click Secured Cluster from the central navigation menu in the Operator details page.
  3. Click Create Secured Cluster.
  4. Select one of the following options in the Configure via field: either Form view or Yaml view.
  5. Enter the new project name by accepting or editing the default name. The default value is stackrox-secured-cluster-services.
  6. Keep all values default for stackrox-secured-cluster-services for same cluster.
  7. Now the stackrox-secured-cluster-services are ready to perform activity.

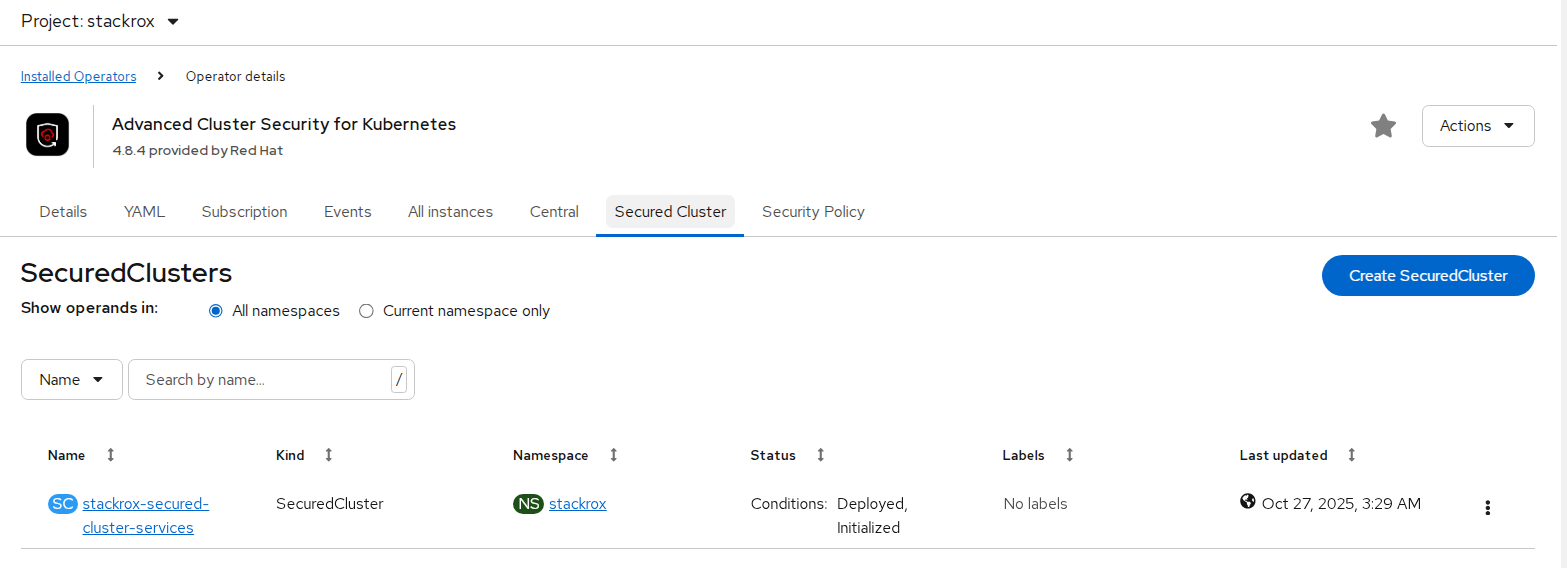

FIGURE 75. Secured Cluster installation

Red Hat Quay

Red Hat Quay is an enterprise-quality container registry. Use Red Hat Quay to build and store container images, then make them available to deploy across your enterprise. The Red Hat Quay Operator provides a simple method to deploy and manage Red Hat Quay on an OpenShift cluster.

Note

This section is required to executed only if user has selected Red Hat OpenShift Data Foundation (ODF) as storage option. Skip this section if HPE Alletra is the storage option.

This section explains configuring Red Hat Quay v3.15 container registry on existing OpenShift Container Platform 4.20 using the Red Hat Quay Operator.

Installation of Red Hat Quay Operator

  1. Log in to Red Hat OpenShift Container Platform console, select Ecosystem → Software Catalog.

  2. Select an existing project name or create new project.

  3. In the search box, type Red Hat Quay and select the official Red Hat Quay Operator provided by Red Hat. This directs you to the Installation page, which outlines the features, prerequisites, and deployment information.

  4. Select Install. This directs you to the Operator Installation page.

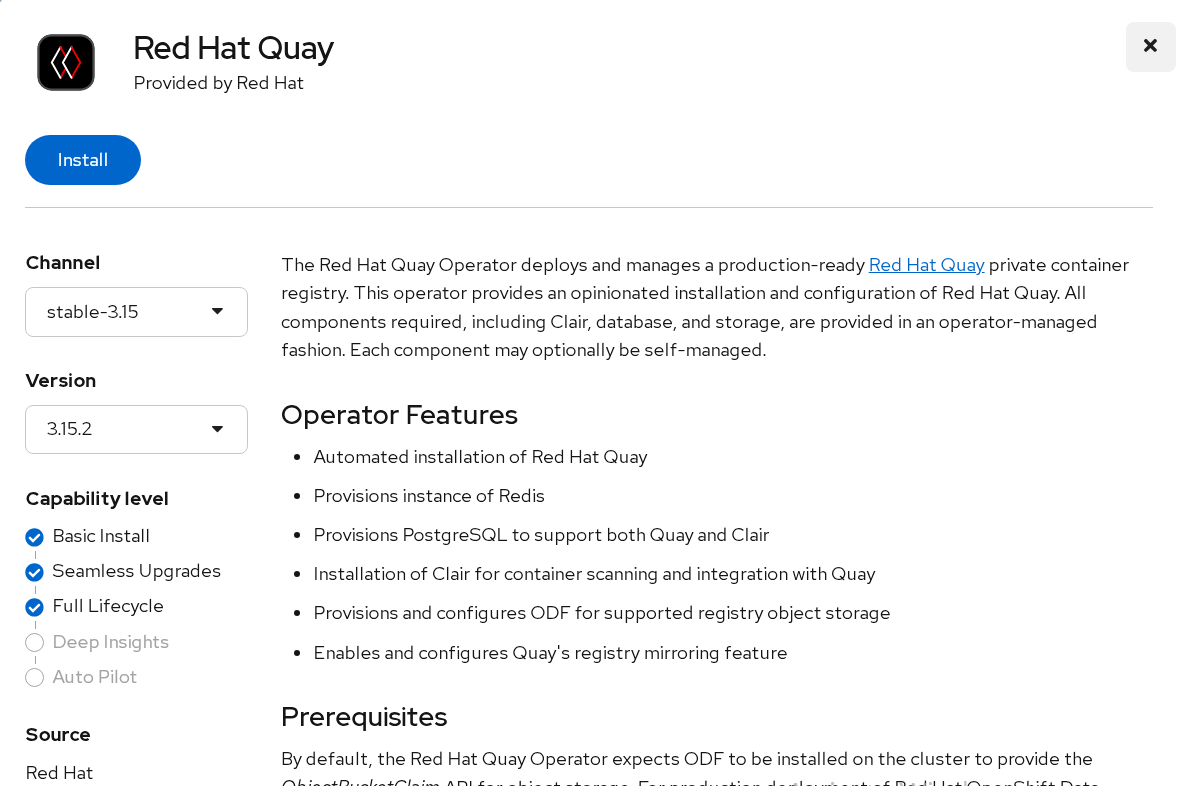

FIGURE 76. Red Hat Quay operator installation

  1. Update the details for Update channel, Installation mode, Installed Namespace, and update approval as shown in the following figure.

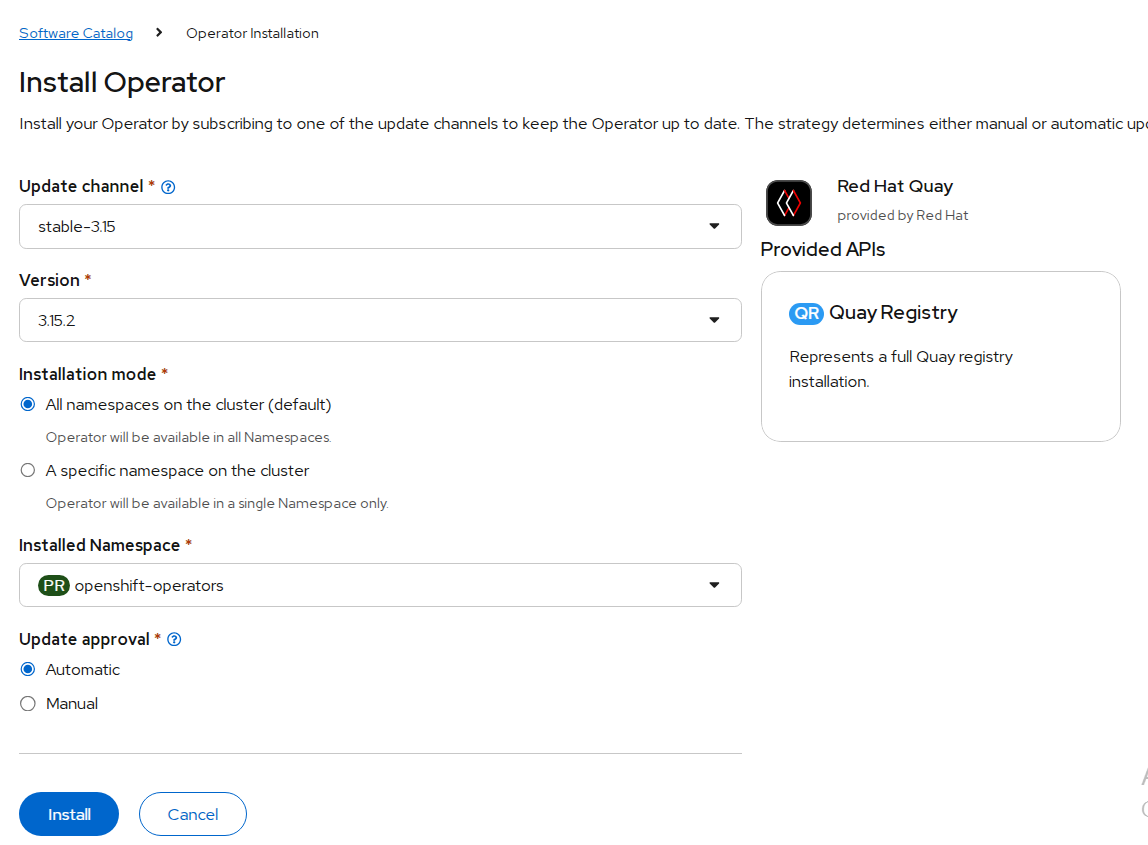

FIGURE 77. Red Hat Quay operator installation details

  1. Select Install.

  2. After installation you can view the operator in the Installed Operators tab.

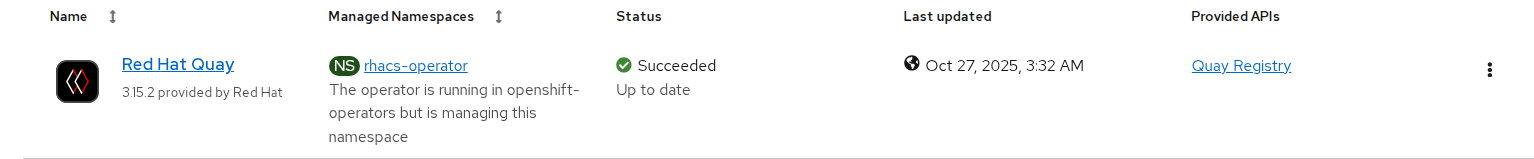

FIGURE 78. Red Hat Quay operator installed successfully

Create the Red Hat Quay Registry

  1. Click the Quay Registry tab → Create QuayRegistry.

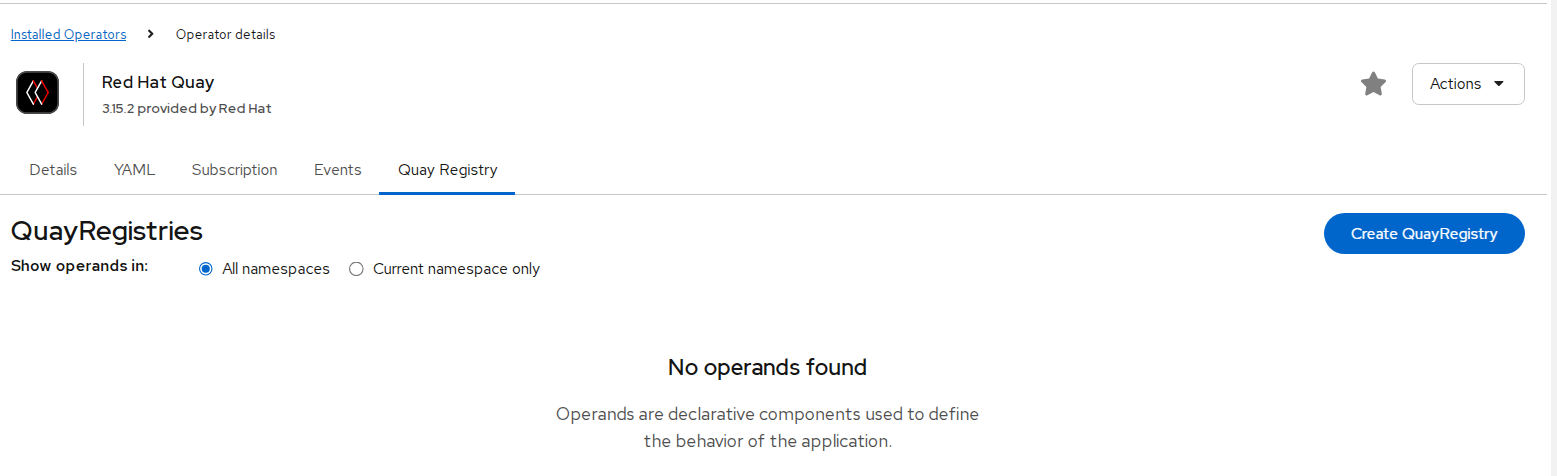

FIGURE 79. Red Hat Quay registry creation

  1. Provide details like name and click create.

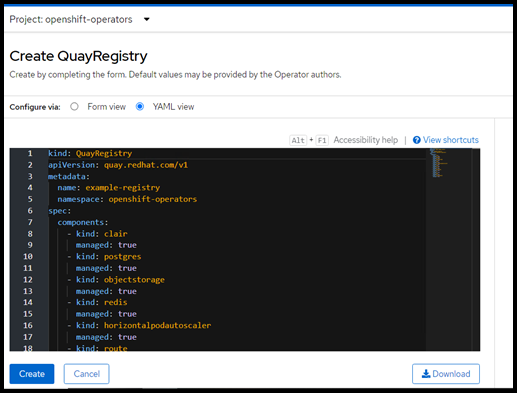

FIGURE 80. Red Hat Quay registry creation yaml details

  1. Quay registry is created and appears as shown in the following figure.

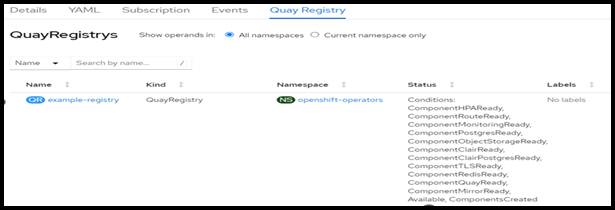

FIGURE 81. Red Hat Quay registry created successfully

  1. Click Create Quay Registry to see registry information.

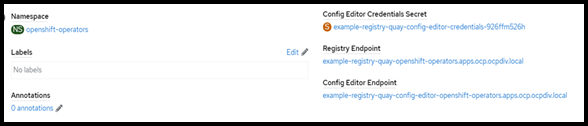

FIGURE 82. Red Hat Quay registry created details

  1. Click Registry Endpoint to open registry dashboard.

If dashboard is not accessible add the entry of registry url to /etc/hosts as follows.

haproxy-ip  <Registry Endpoint URL>
haproxy-ip example-registry-quay-openshift-operators.apps.ocp.ocpdiv.local
  1. Quay registry dashboard login page appears as shown in the following figure.

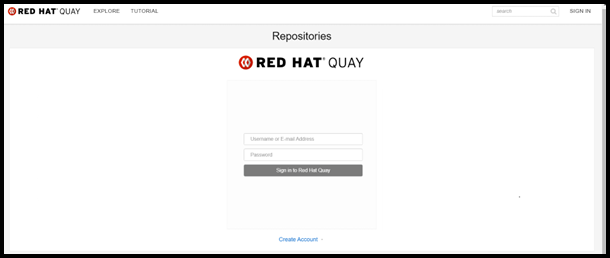

FIGURE 83. Red Hat Quay account login page

  1. Enter details as shown and click Create Account.

  2. Click sign in and enter details provided while creating the account.

Veeam Kasten

Kasten K10 by Veeam is a cloud-native data management platform purpose-built for Kubernetes applications. It provides reliable backup, restore, disaster recovery, and application mobility for workloads running on Kubernetes distributions, including Red Hat OpenShift.

Kasten K10 takes an application-centric approach to backup. Instead of only protecting storage volumes, it captures all the resources that define an application, including Kubernetes objects, configurations, secrets, and persistent volumes. This ensures consistent application recovery whether restoring within the same cluster or migrating to another OpenShift cluster.

Prerequisites

  1. A running Red Hat OpenShift cluster with sufficient CPU, memory, and storage.
  2. Cluster admin privileges for installation.
  3. A configured CSI (Container Storage Interface) driver (Internal ODF, External Ceph, or HPE Alletra Storage MP).
  4. A default StorageClass with snapshot support.
  5. An object storage bucket (e.g., MinIO) configured as the backup target.
  6. Ingress or Route access for the Kasten K10 dashboard.

NOTE

The VolumeSnapshotClass associated with the storage class used for Kasten backups must include the annotation: k10.kasten.io/is-snapshot-class: "true"

Deploying MinIO for Kasten Backup Storage

  1. Prepare an Ubuntu machine with internet access.

  2. Download and install the MinIO server binary:

    wget https://dl.min.io/server/minio/release/linux-amd64/minio
chmod +x minio
sudo mkdir -p /minioap
sudo chown $(whoami):$(whoami) /minioap
./minio server /minioap

    The MinIO service runs at http://<Ubuntu-IP>:9000 with default credentials minioadmin:minioadmin.

  3. Configure MinIO for Kasten:

    mc alias set myminio http://<Ubuntu-IP>:9000 minioadmin minioadmin
mc admin user add myminio <username> <password>
mc admin policy attach myminio readwrite --user <username>

  4. Create a bucket for Kasten backups:

    1. Log in to the MinIO console using the new credentials.
    2. Click Create Bucket in the MinIO console.
    3. Name the bucket, e.g., kasten-backup.
    4. The bucket should now appear in the console.

    The MinIO server is now ready as an object store backend for Kasten K10 backups.

Installing Kasten K10 Operator on OpenShift

  1. Log in to the OpenShift web console as a cluster admin.
  2. Navigate to Ecosystem -> Software Catalog.
  3. Select an existing project name or create new project.
  4. Search for Veeam Kasten and click Install.

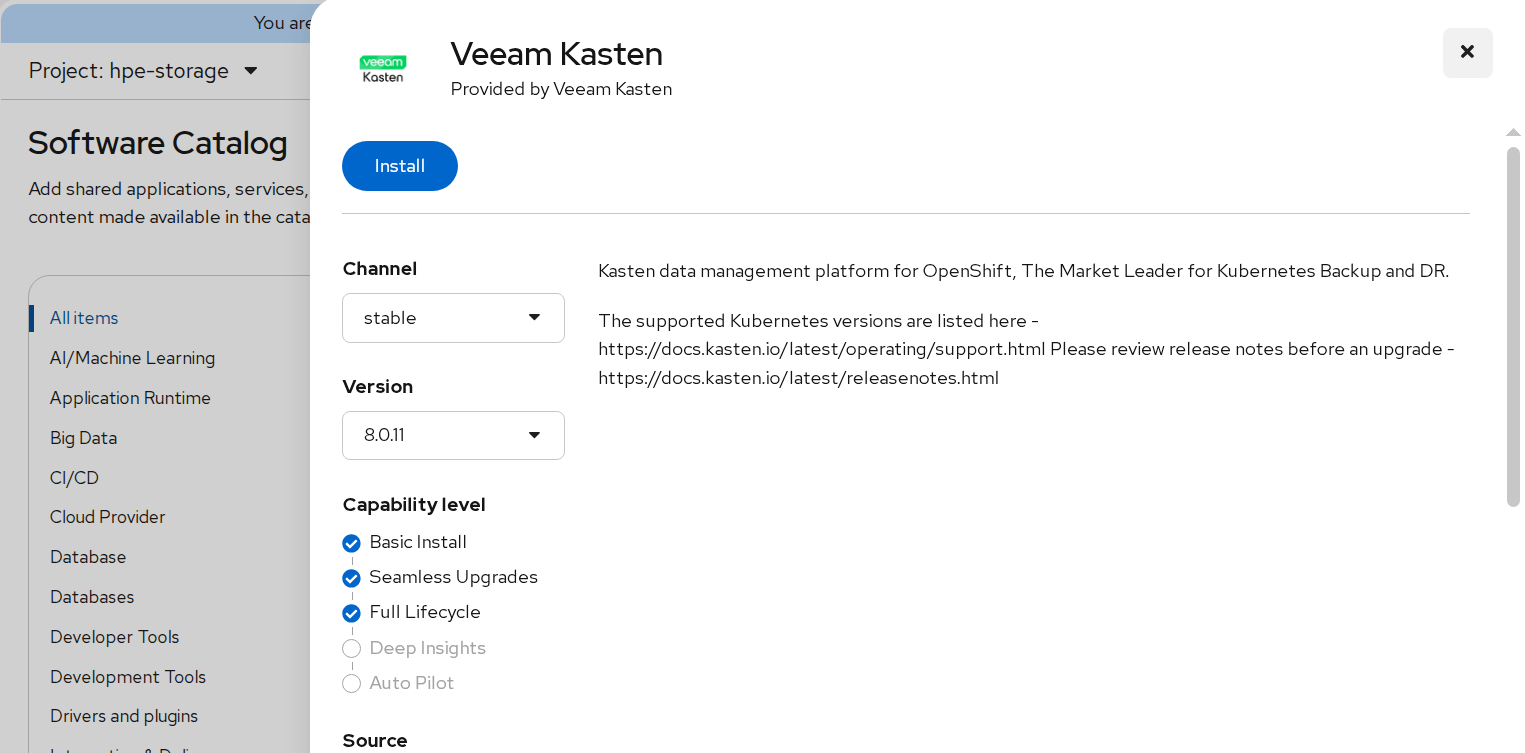

FIGURE 84. Veeam Kasten Operator Installation

  1. Choose installation settings:
    • Installation Mode: All namespaces on the cluster
    • Installed Namespace: kasten-io (auto-created)
  2. Wait until the operator status shows Succeeded.

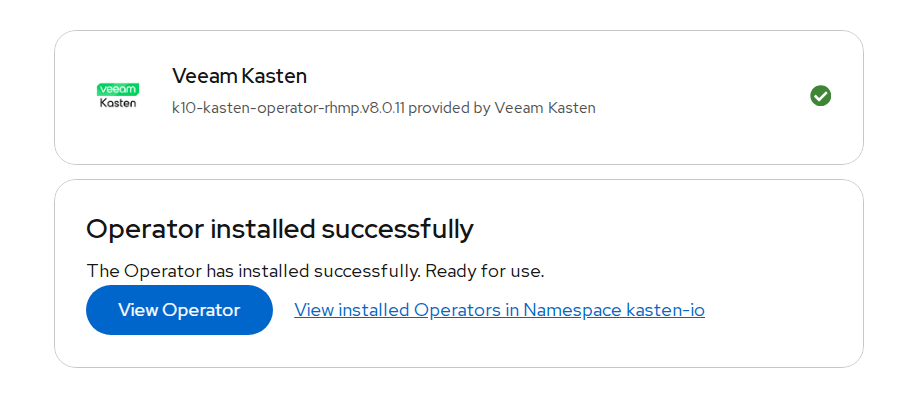

FIGURE 85. Veeam Kasten Operator successfully installed

Creating the Kasten K10 Instance

  1. Go to Ecosystem ->Installed Operators -> select Veeam Kasten.
  2. Under the K10 tab, click Create K10.
  3. Keep default values and click Create.

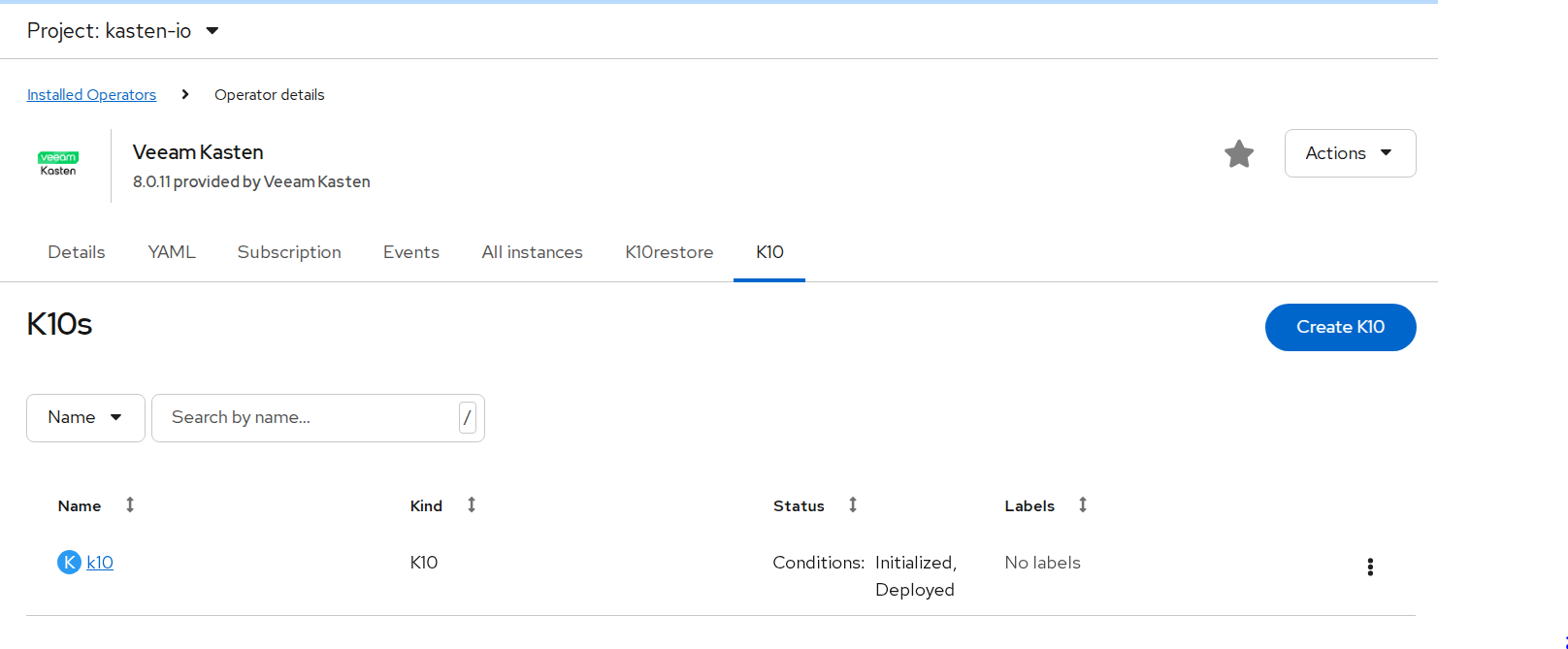

FIGURE 86. Kasten instance created

  1. Verify pod status:
    oc get pods -n kasten-io

Exposing the K10 Dashboard

  1. Get K10 services:
    oc get svc -n kasten-io
  2. Expose the gateway service using an OpenShift route:
    oc expose svc gateway -n kasten-io
  3. Retrieve the route URL:
    oc get route -n kasten-io
  4. Access the dashboard at http://gateway-kasten-io.apps.<cluster-domain>/k10/.

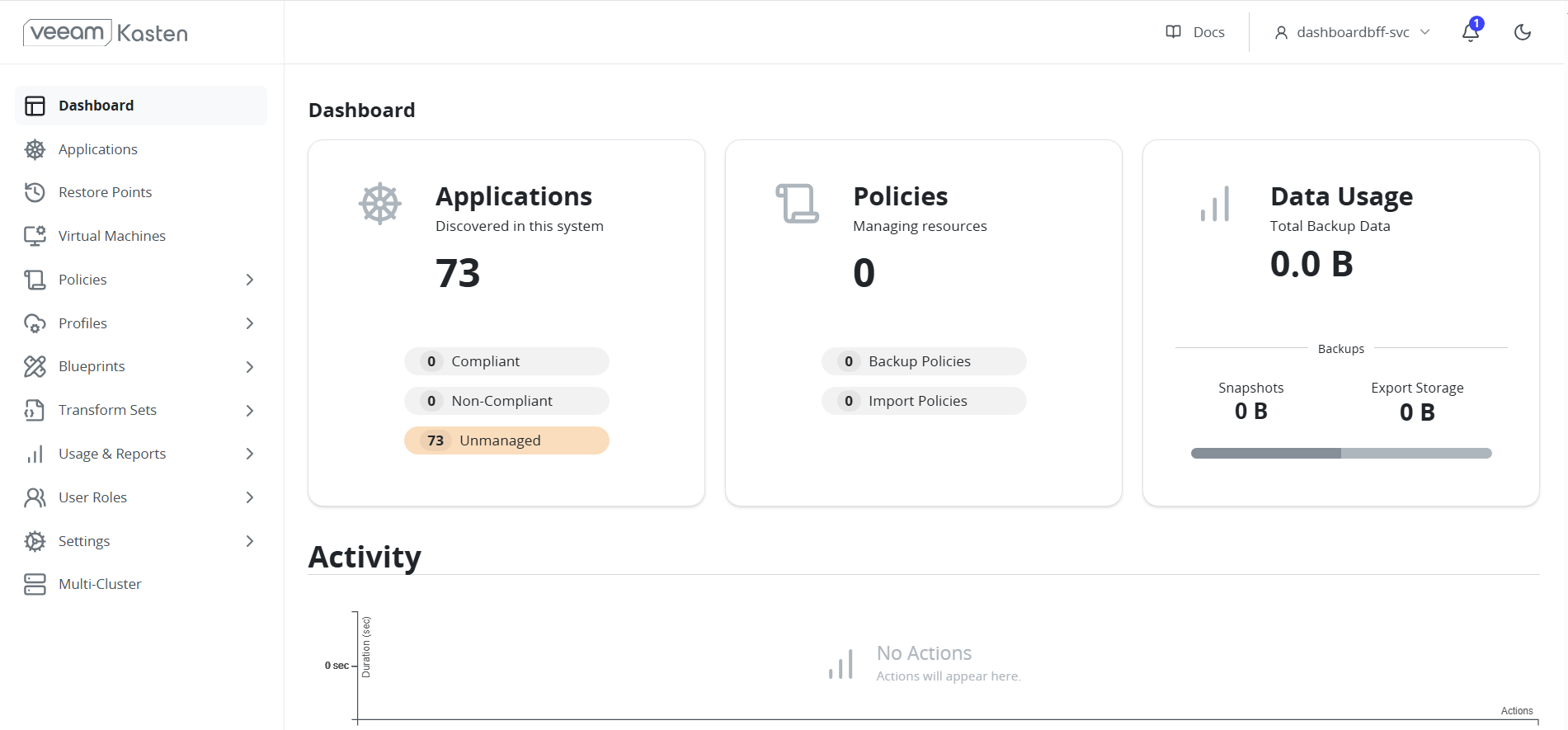

FIGURE 87. Kasten Dashboard

Backup and Restore Using Kasten K10

Creating a Location Profile (MinIO)
  1. Log in to the Kasten K10 dashboard.
  2. Navigate to Profiles -> Location -> New Profile.
  3. Fill details as below:
    • Access Key / Secret Key: MinIO credentials
    • Endpoint URL: http://<MinIO-IP>:9000
    • Bucket Name: kasten-backup
    • Region: us-east-1
    • Enable Skip TLS Verification if using HTTP.

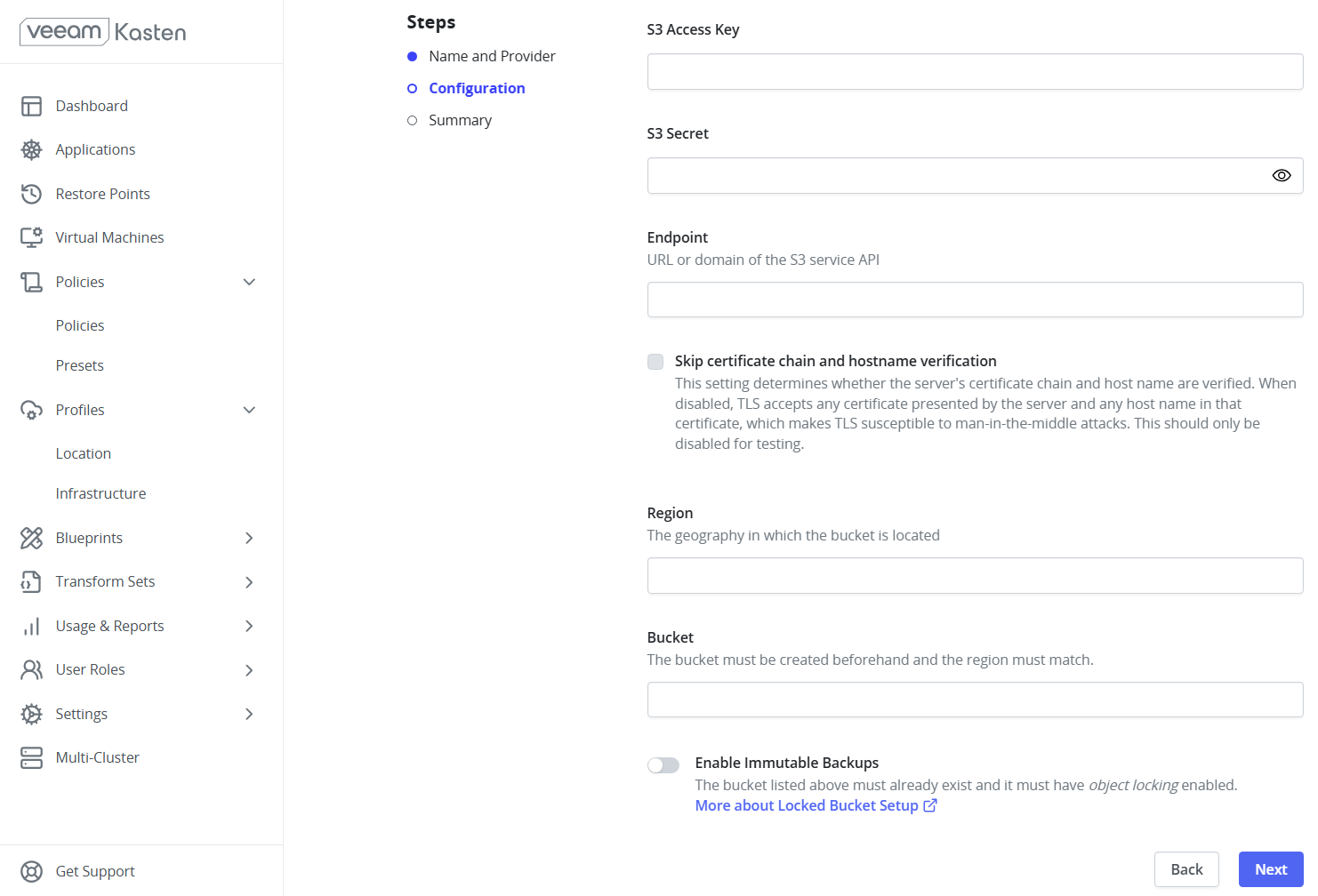

FIGURE 88. Creating Location Profile

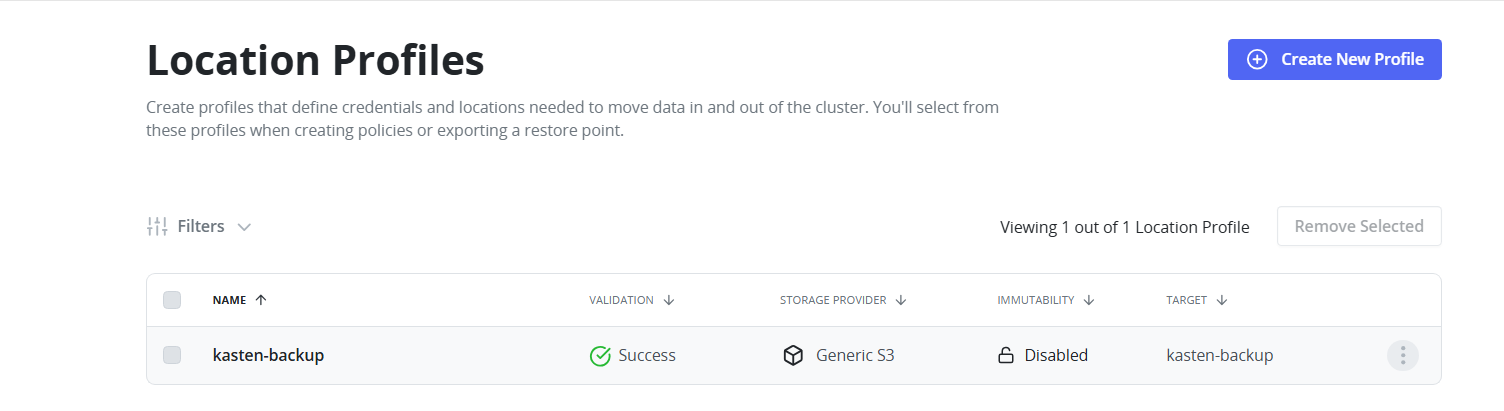

FIGURE 89. Location Profile created

Creating a Backup Policy
  1. Go to Policies -> Create New Policy.
  2. Set policy name.
  3. Select Snapshot under Actions.
  4. Set Backup Frequency as per your requirement.
  5. Enable Backup via Snapshot Export and choose the MinIO Location Profile.
  6. Select target namespace.
  7. Save and manually trigger the policy for initial backup.

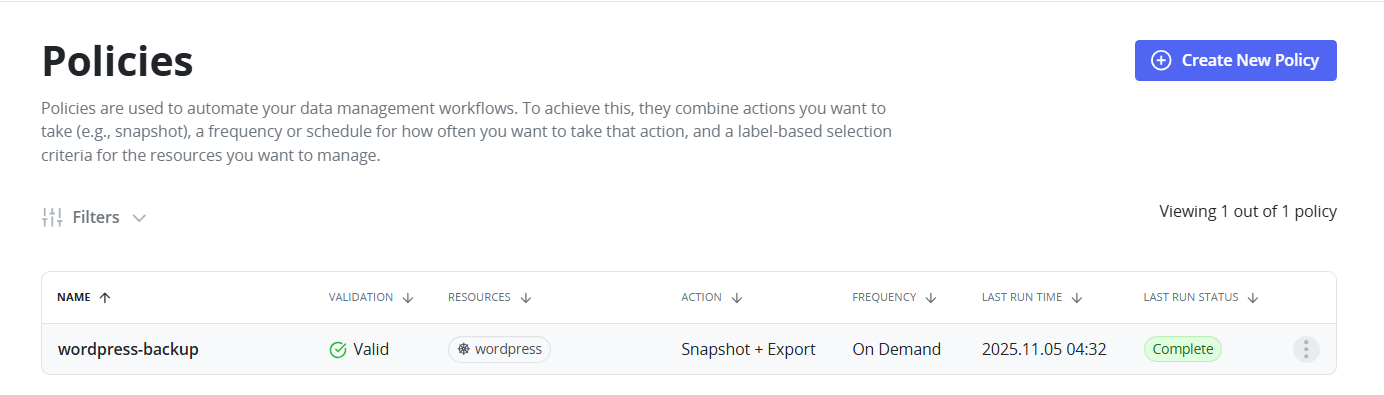

FIGURE 90. Backup Policy

  1. Monitor the progress of the backup policy directly from the Kasten dashboard.

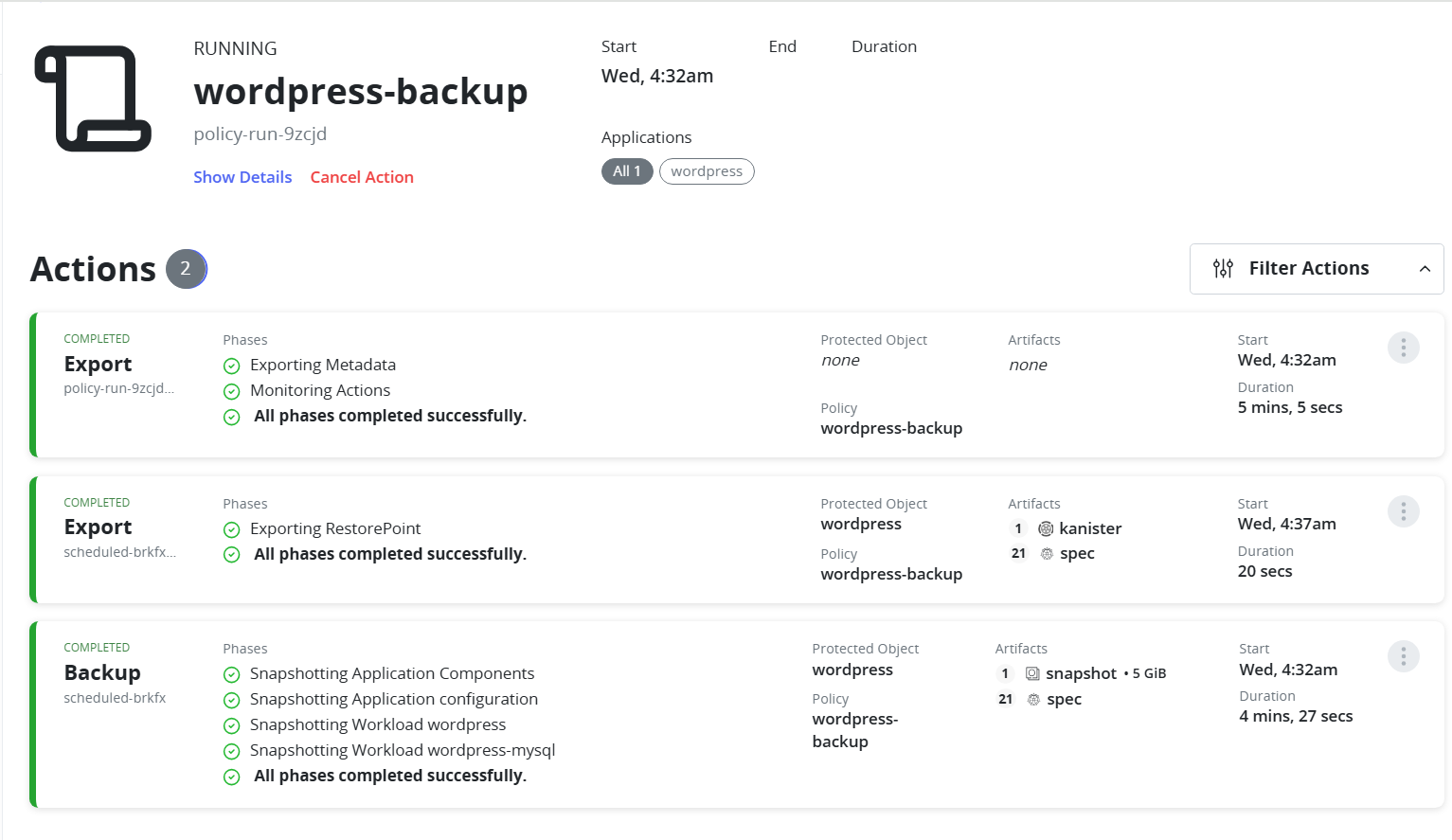

FIGURE 91. Running backup policy

Grant Required Permissions Before Restore

Before restoring an application or namespace, ensure that the target namespace has the appropriate Security Context Constraints (SCC) assigned to allow restored pods to run successfully.

Run the following command to grant the anyuid SCC to the default service account in the target namespace. Replace <namespace> with the namespace where the application will be restored:

oc adm policy add-scc-to-user anyuid -z default -n <namespace>
Restoring a Namespace
  1. Navigate to Restore Points.
  2. Select a restore point.
  3. Choose the target namespace (existing or new).
  4. Confirm Restore and wait until the pods are recreated.

FIGURE 92. Restoring the namespace

FIGURE 93. Restore successfully completed

Cross-Cluster Restore
  1. Ensure Kasten K10 is deployed in the target cluster and has access to the same MinIO bucket.
  2. In the target cluster, create the same Location Profile pointing to the MinIO bucket.
  3. Go to Policies -> Create New Policy.
  4. Enter a policy name.
  5. Under Actions, select Import.
  6. Set the Import Frequency.
  7. Under Config Data for Import, paste the configuration text from the backup policy on the source cluster.
  8. Select the Profile for Import.
  9. Save the policy and run it manually for the first import.
  10. Navigate to Restore Points.
  11. Choose the desired Restore Point.
  12. Select a Namespace in the target cluster where the application will be restored.
  13. Confirm Restore. The application will be recreated with its persistent data and cluster resources.

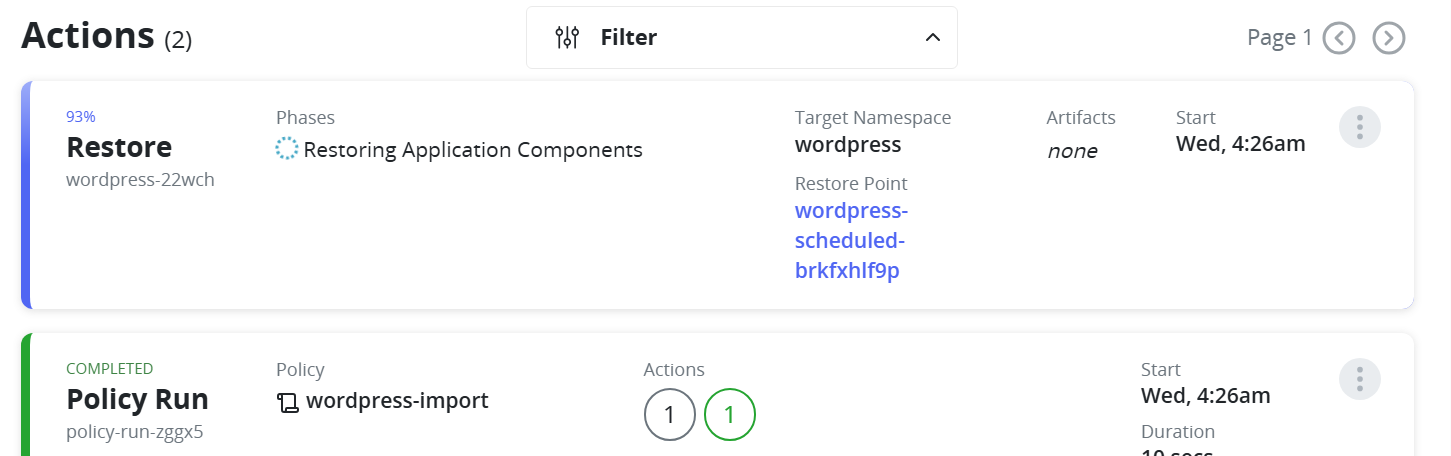

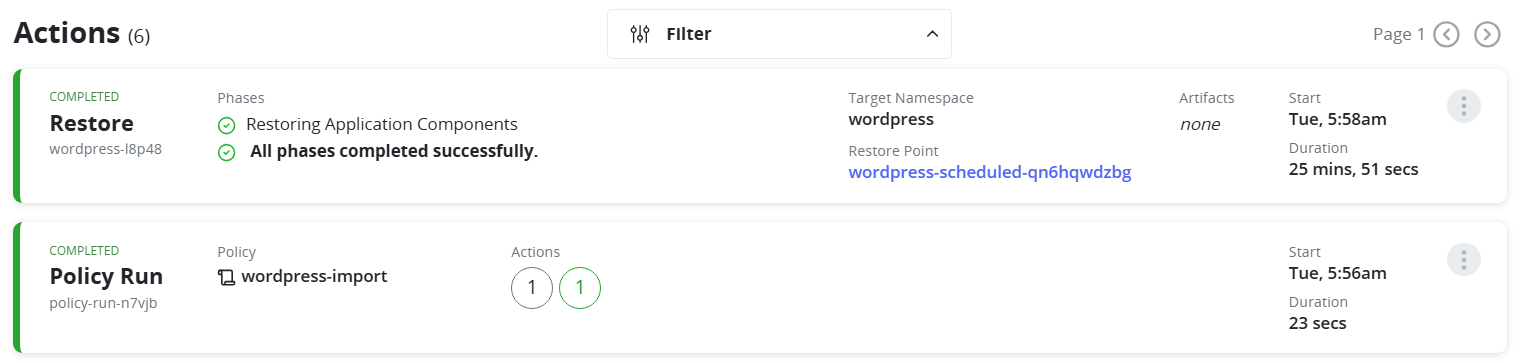

FIGURE 94. Cross cluster restore
